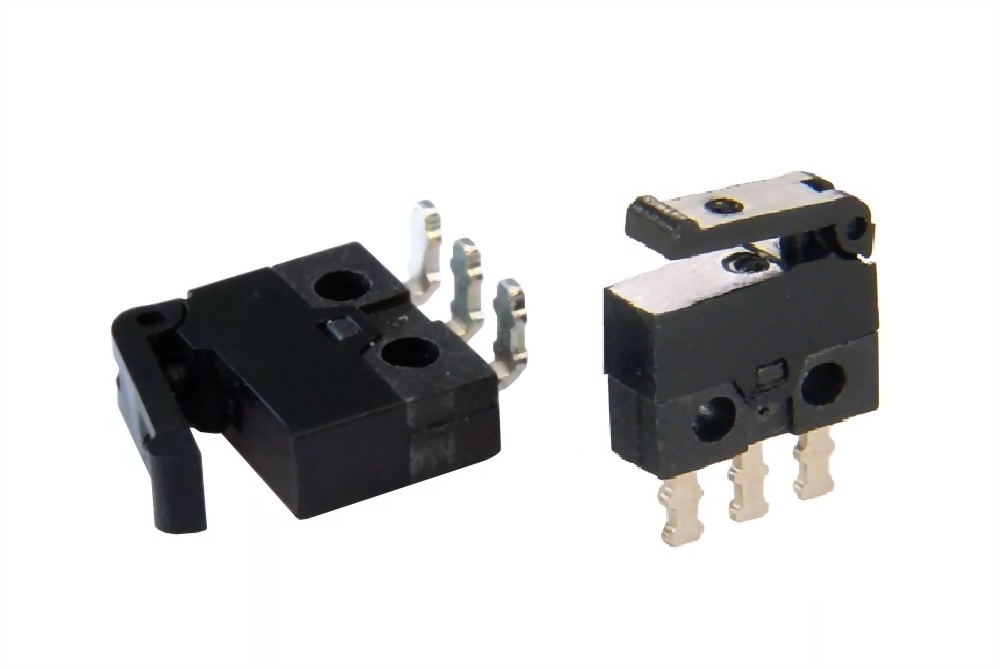

微型微動開關
Rating: 500mA 30V DC
Operating Force: 120g
Withatand Voltage: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 100MΩ
Operating Temperature: -25oC ~ +70oC
Endurance With Load: 300,000 Cycles
Operating Force: 120g
Withatand Voltage: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 100MΩ
Operating Temperature: -25oC ~ +70oC
Endurance With Load: 300,000 Cycles
微型微動開關額定500mA／30VDC，操作力120g，耐電壓250VAC／1分鐘，工作溫度-25℃～+70℃，負載壽命可達300,000次。
適用於位置檢知、限位控制、門蓋偵測、家電機構及自動化設備的機械觸發，並可依設備介面與安裝條件選用。
